Standard Flexible Couplings

STANDARD COUPLINGS

  • PROVEN PERFORMANCE : Tested designs backed by over five decades of reliable field performance.

  • DEPENDABLE SEALING : Provides a positive seal against infiltration and exfiltration across a wide range of applications.

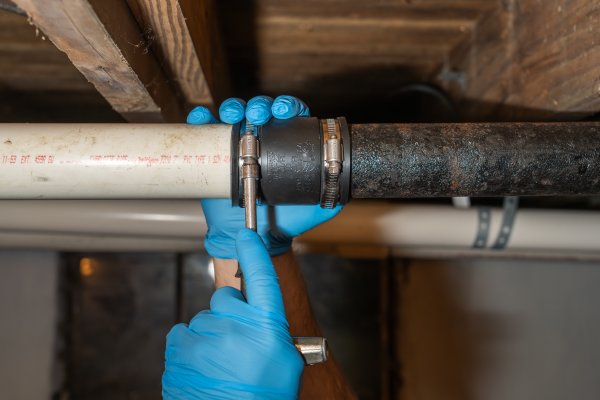

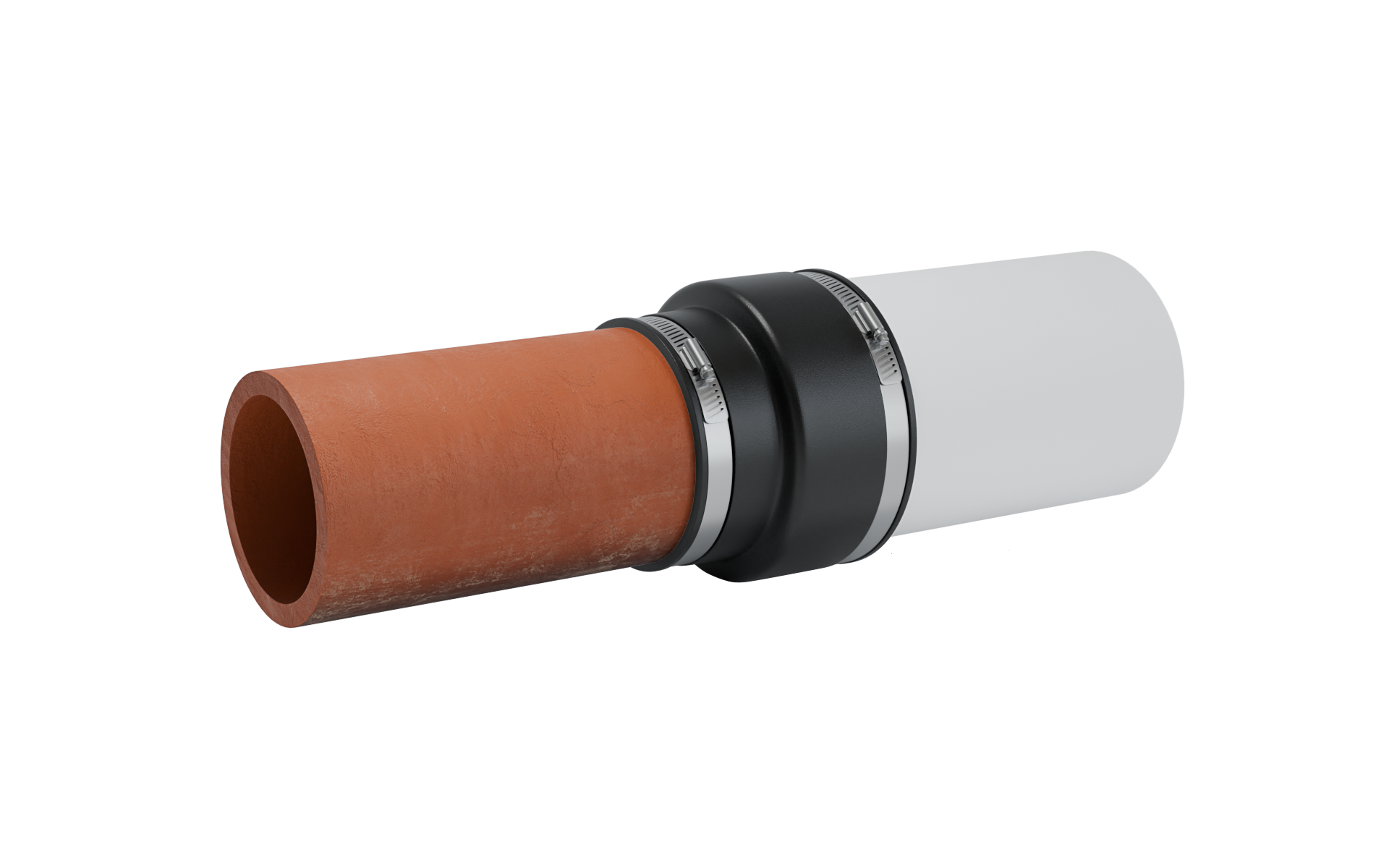

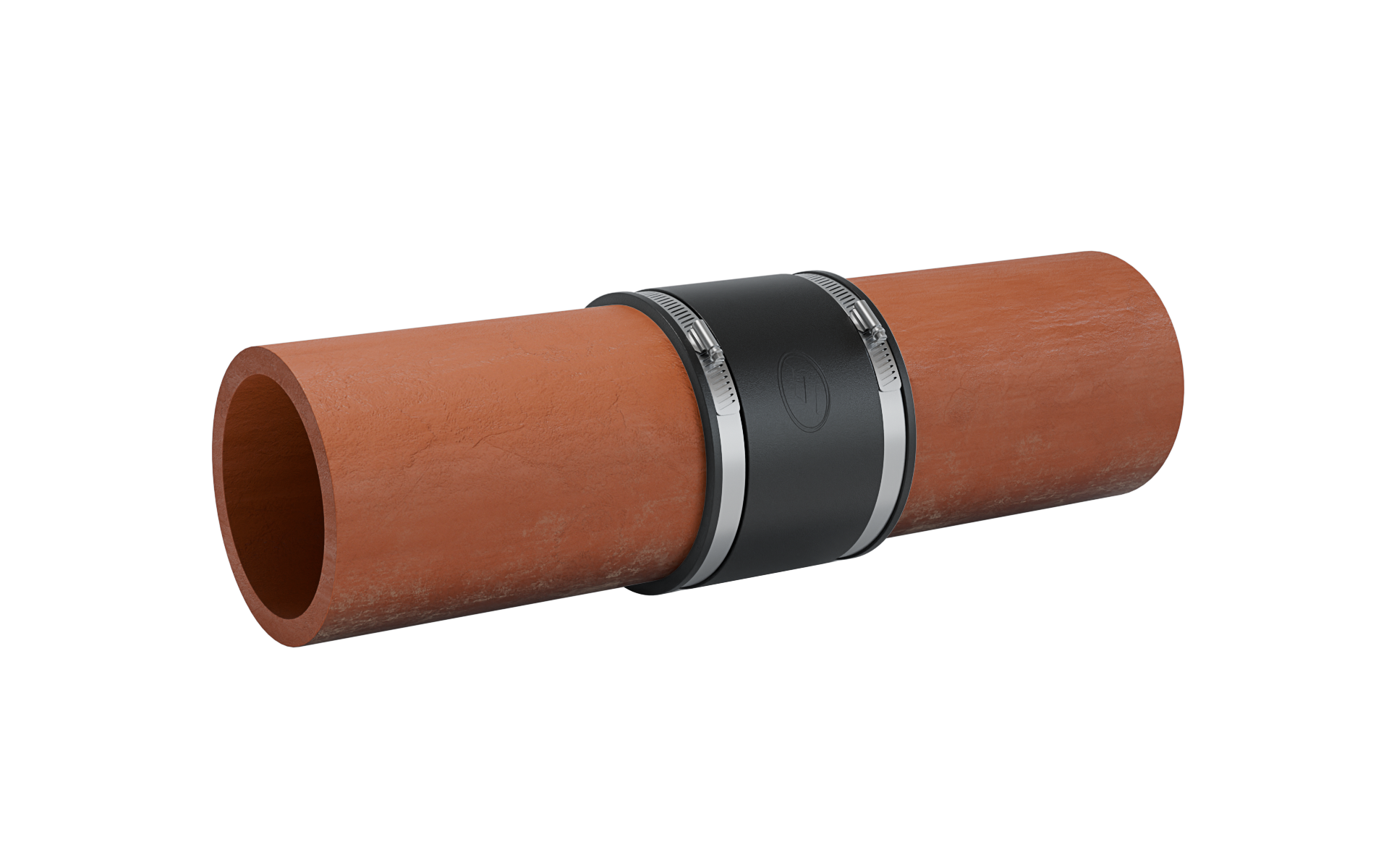

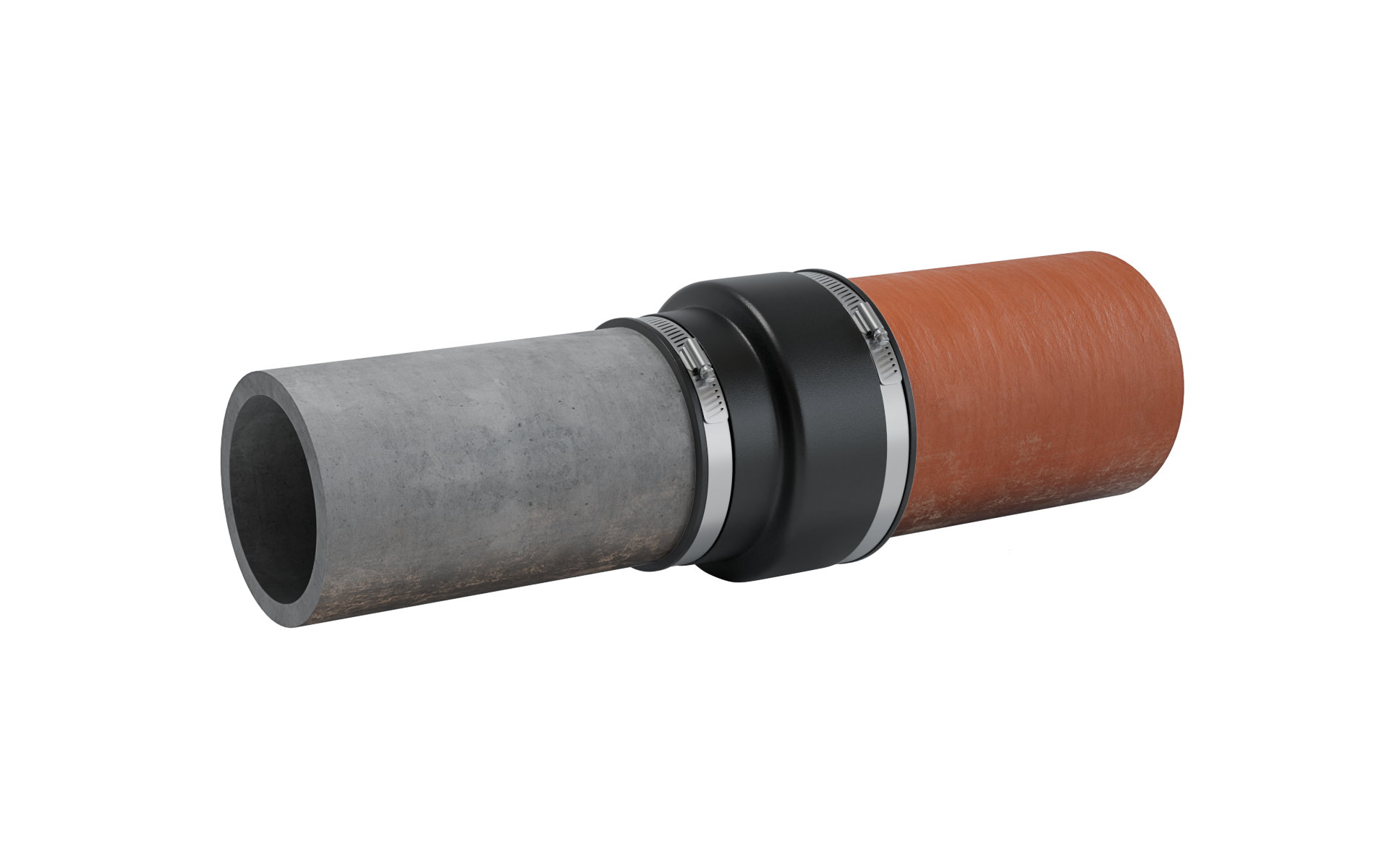

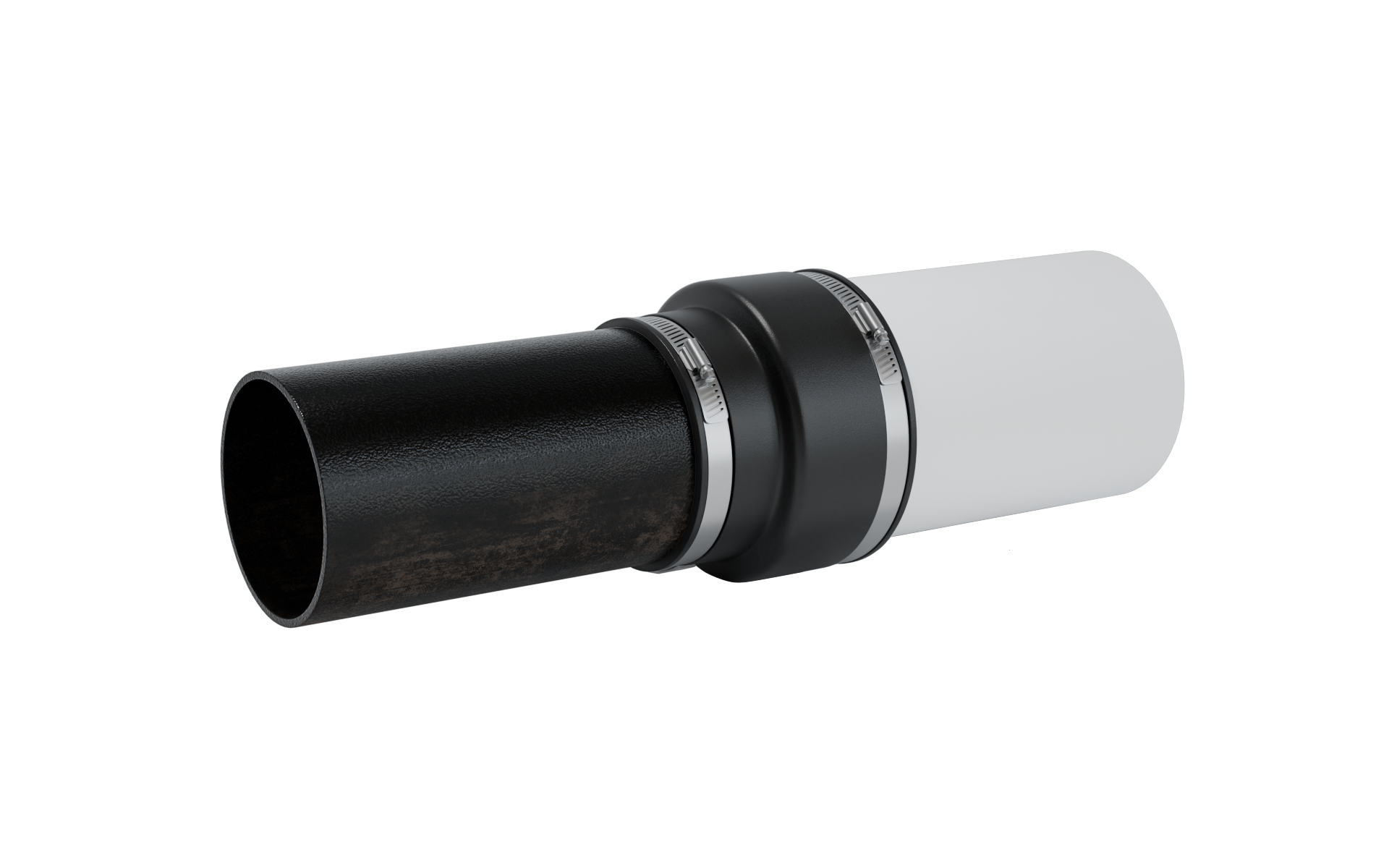

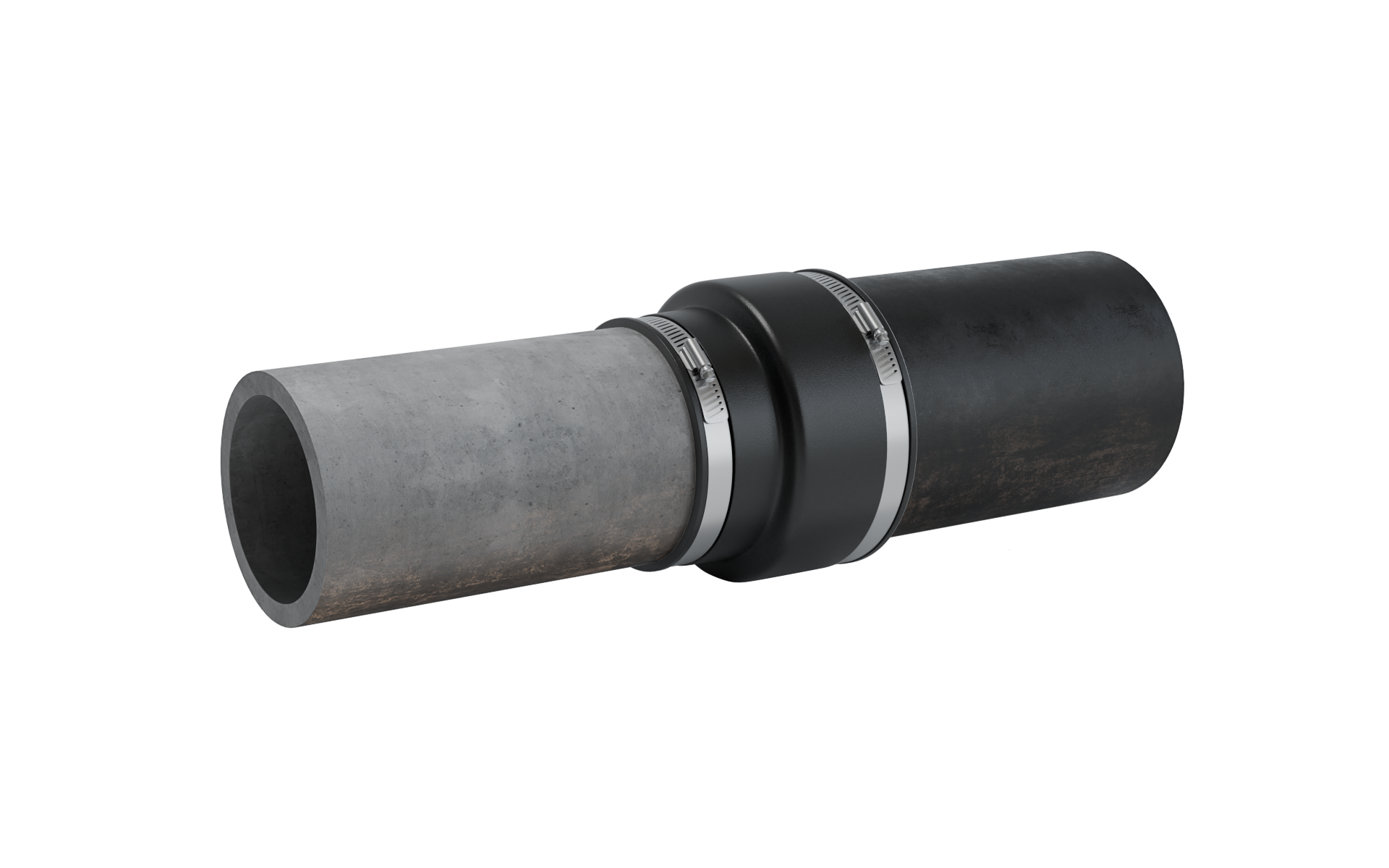

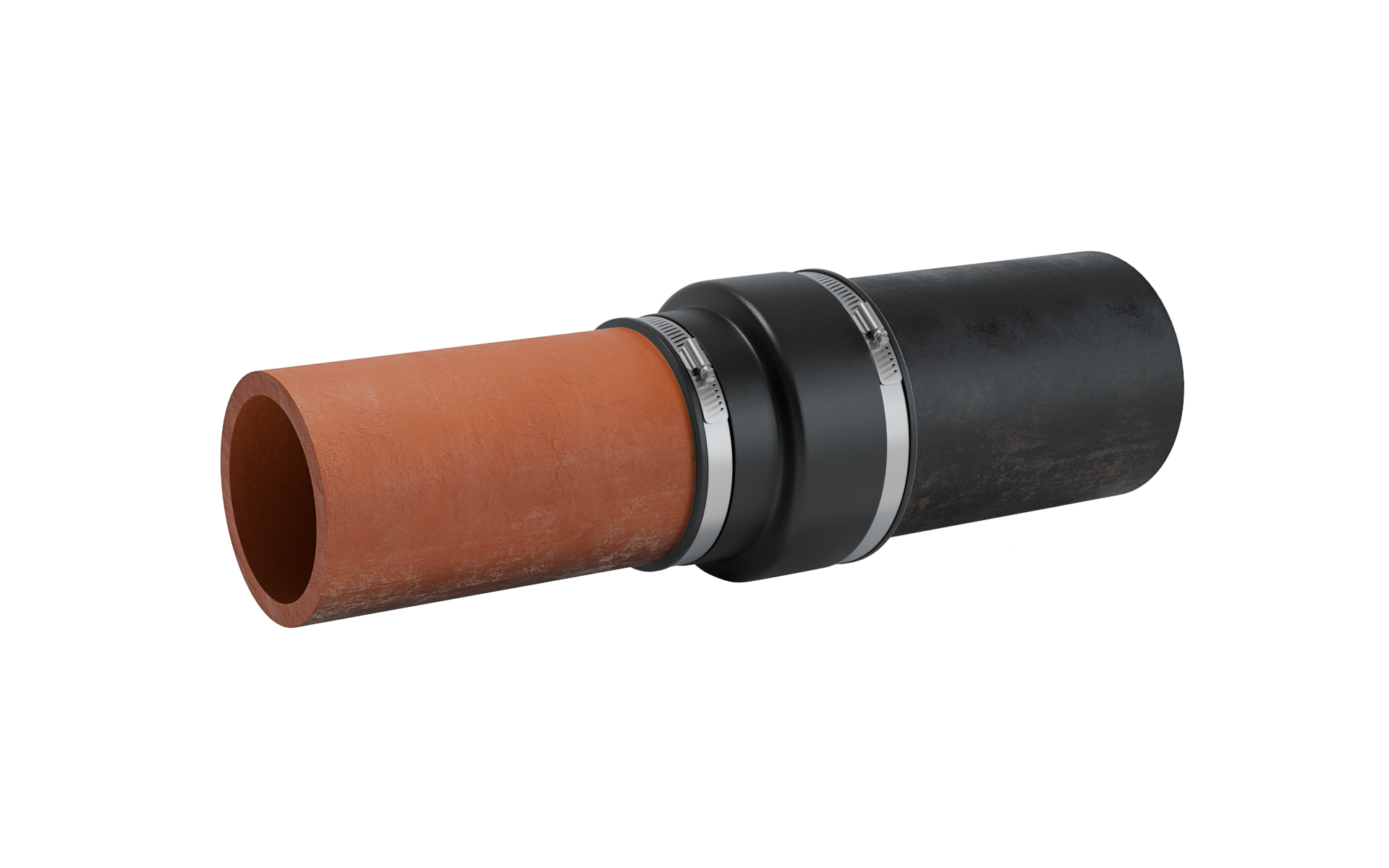

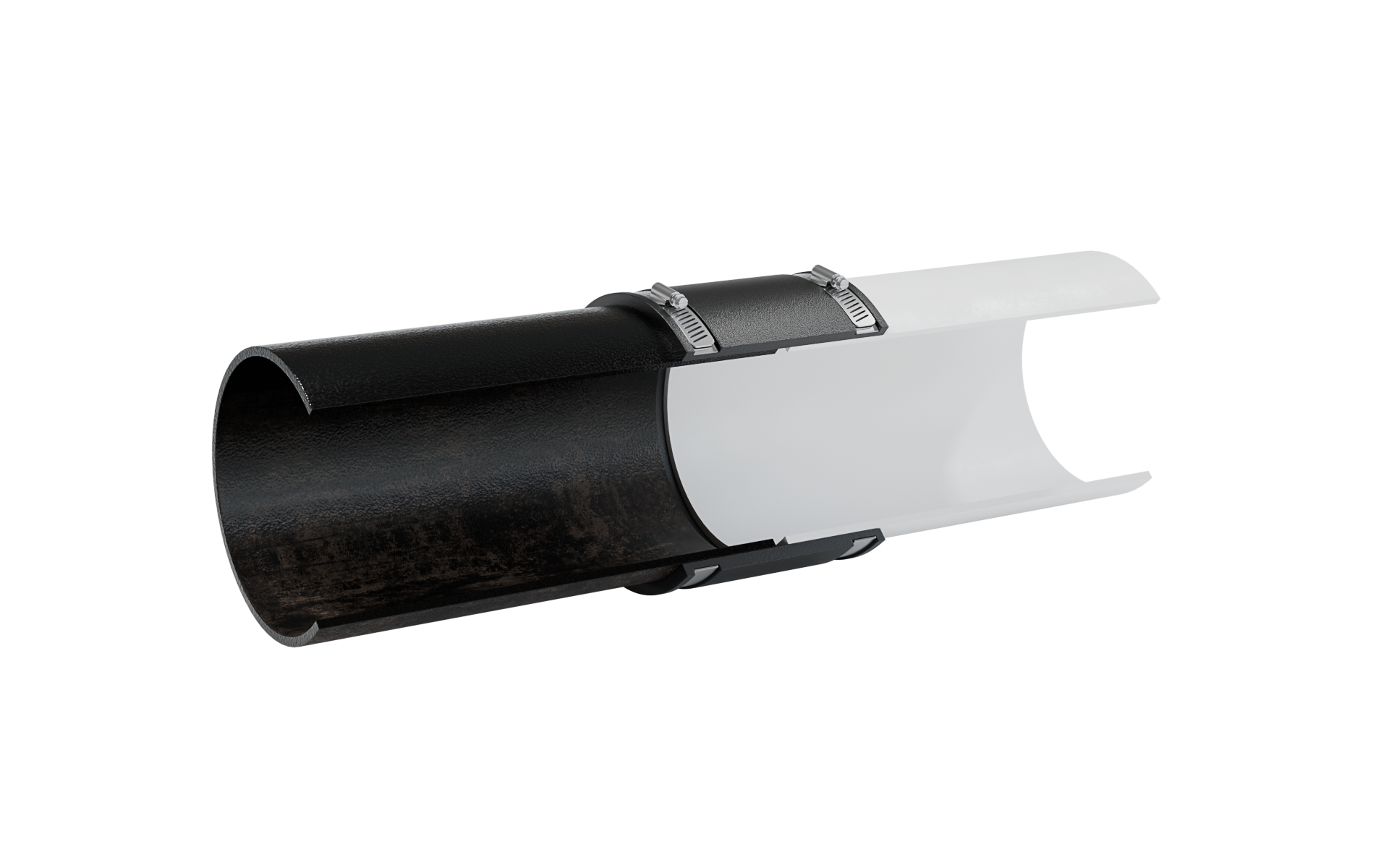

  • VERSATILE CONNECTIONS : Connects same or different pipe sizes and materials quickly and easily.

PRODUCT DESCRIPTION

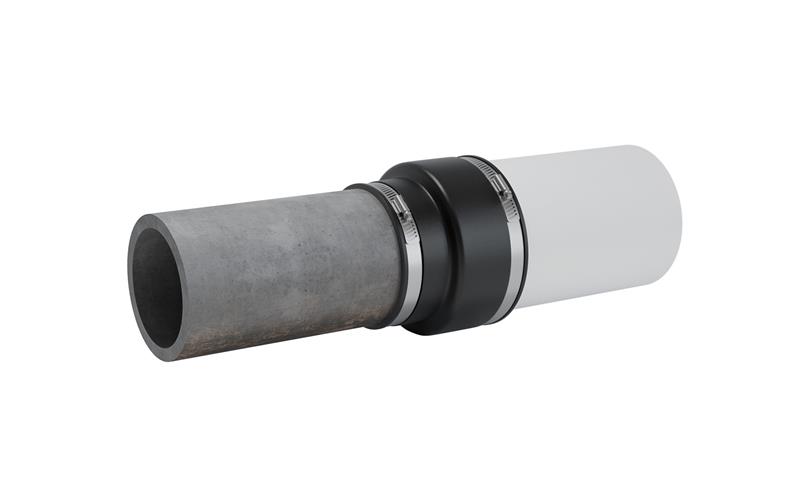

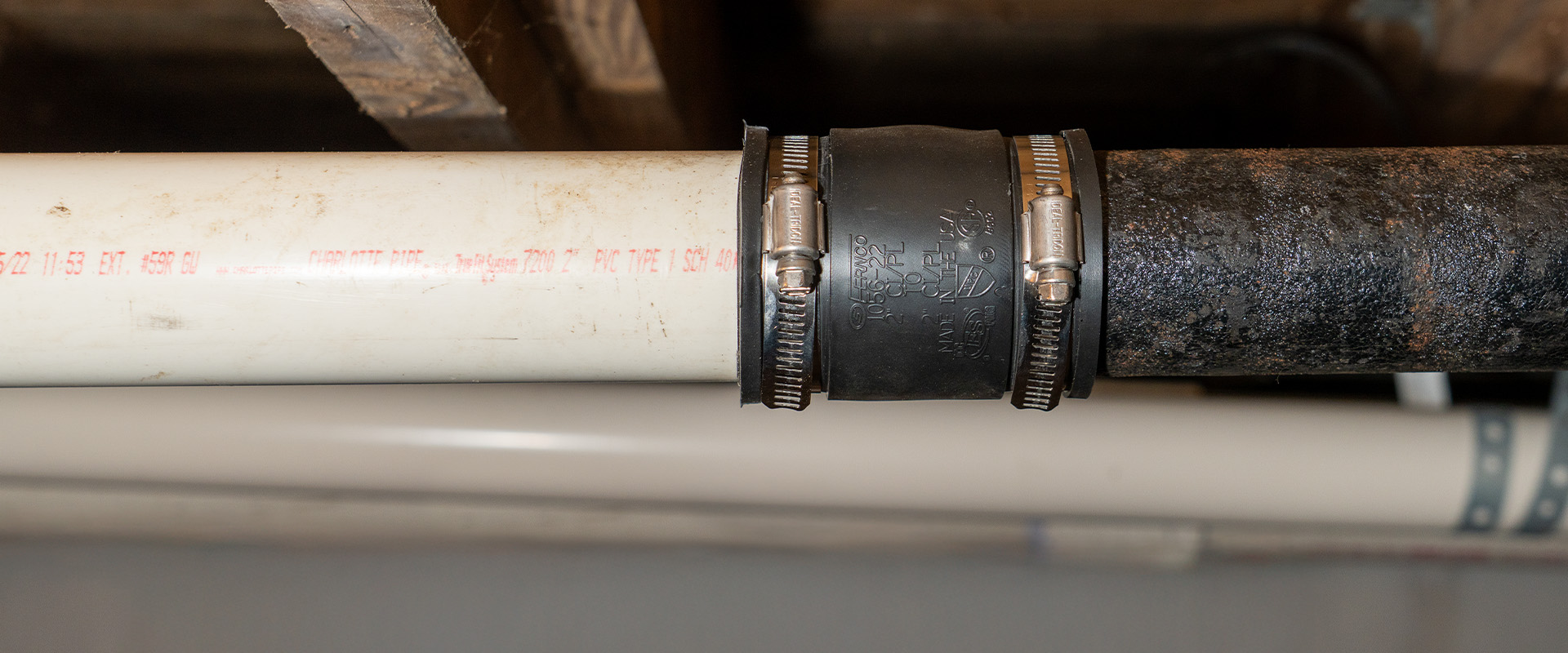

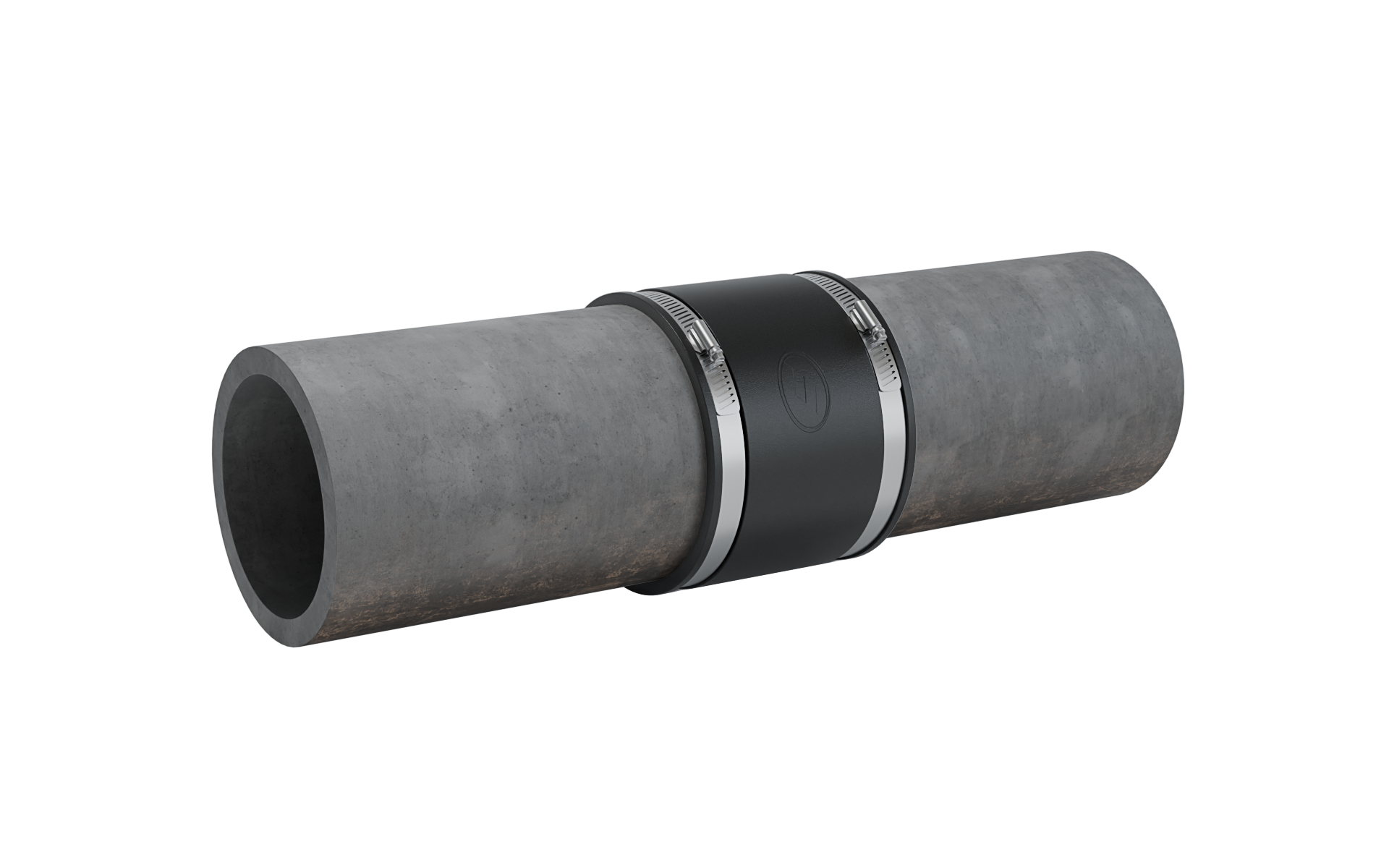

Fernco manufactures the most complete line of flexible couplings in the industry, ranging from 3/4" to 27" (19mm to 381mm). Known for consistent, superior performance, Fernco Couplings deliver reliable, leak-proof seals across virtually any pipe material. Their dimensional flexibility ensures secure connections while accommodating variations in pipe size and material. Each coupling is clearly marked with part number, size and compatible pipe materials, giving contractors confidence in proper selection and installation.


Specifications

Features:

  • Positive seal against infiltration and exfiltration
  • Resistant to chemicals, ultraviolet rays, fungus growth and normal sewer gases
  • Conforms to ASTM D5926, ASTM C1173 and CSA B602
  • Stainless steel clamps are corrosion-resistant and rustproof

Technical:

  • Installation Torque: 60 in-lbs.
  • Maximum Test Pressure: 4.3 PSI (29.6 KPA)
  • Maximum Operating Temperature: 140° F non-consistent
  • Minimum Operating Temperature: -30° F
