Catch Basins Square
Catch Basins - Square
Available in 9” x 9“ and 12” x 12“ sizes in Green or Black
Used as a collection of medium-volume water flow where two or more drain lines converge. Basins can provide a transition between different sizes and types of pipe, and can also change the elevation or direction of the pipe.
Features

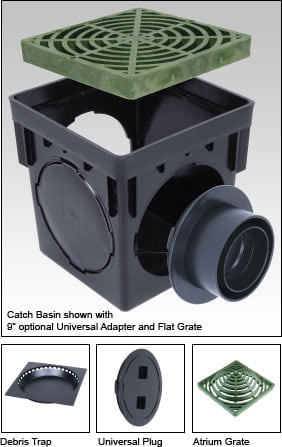

- Square catch basin with two open side outlets
- Two additional side knock-outs and one bottom knock-out for a total of five possible outlets
- Strong and durable flat grates are Class B rated
- Available in green or black
- Universal Adapter (sold separately) accepts the following pipe:
- 3” and 4” Sewer & Drain pipe or hub
- 3” and 4” corrugated pipe
- 3” and 4” triple wall pipe
- 3” and 4” Sch. 40 pipe
Specifications
Models
- FSD-090-CB-2 - 9” W x 10” D
- FSD-120-CB-2 - 12” W x 13” D
Accessories
- Accessories for 9” Catch Basins
- FSD-UA-001 - Universal Catch Basin Adapter
- FSD-UA-Plug - Universal Catch Basin Plug
- FSD-094-SF - Flat Grate, Black
- FSD-090-SF - Flat Grate, Green
- FSD-090-A - Atrium Grate, Green
- FSD-094-A - Atrium Grate, Black
- Accessories for 12” Catch Basins
- FSD-UA-001 - Universal Catch Basin Adapter
- FSD-UA-Plug - Universal Catch Basin Plug
- FSD-124-SF - Flat Grate, Black
- FSD-120-SF - Flat Grate, Green
- FSD-120-A - Atrium Grate, Green
